Nombor Bahagian
SML-LX3939RGBC-TR
-
Pengilang / jenama
-
Kuantiti saham
Dalam stok
-
Penerangan
LED RGBCLEAR 10.1MM X 10.1MM SMD
-
Status Status Percuma / Rosh Status
Lead percuma / RoHS Compliant
-
Helaian data
-
panjang gelombang
626nm Red, 525nm Green, 470nm Blue
-
Voltan - Penyerang (Vf) (Typ)
2.1V Red, 3.5V Green, 3.5V Blue
-
sudut Penglihatan
130°
-
Rintangan haba Pakej
-
-
Suhu - Ujian
25°C
-
Pembekal Peranti Pakej
SMD
-
Saiz / Dimensi
0.398" L x 0.398" W (10.10mm x 10.10mm)
-
Siri
TitanBrite™
-
pembungkusan
Original-Reel®
-
Pakej / Kes
6-SMD, No Lead Exposed Pad
-
Nama lain
67-2086-6
SMLLX3939RGBCTR
-
pemasangan Jenis
Surface Mount
-
Tahap Sensitiviti Lembapan (MSL)
6 (Time on Label)
-
Lumen / @ Semasa - Ujian
34 lm/W Red, 29 lm/W Green, 7 lm/W Blue
-
Status Status Percuma / Rosh Status
Lead free / RoHS Compliant
-

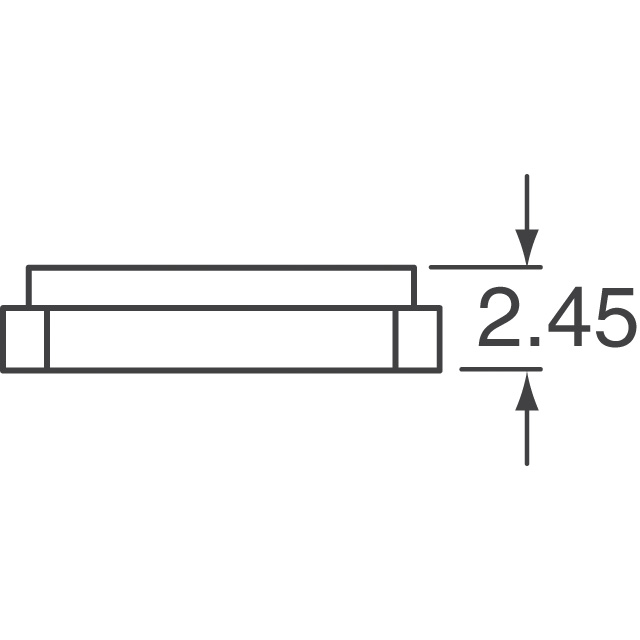

Tinggi - Duduk (Max)
0.096" (2.45mm)
-
Fluks @ Semasa / Suhu - Ujian
25 lm Red, 35 lm Green, 8 lm Blue
-
Penerangan terperinci
LED Lighting Color TitanBrite™ Red, Green, Blue (RGB) 626nm Red, 525nm Green, 470nm Blue 6-SMD, No Lead Exposed Pad
-
Semasa - Ujian
350mA Red, 350mA Green, 350mA Blue
-
Semasa - Max
300mA Red, 350mA Green, 350mA Blue
-
warna
Red, Green, Blue (RGB)
